Pop-Up

Sockets that pop up when they’re needed

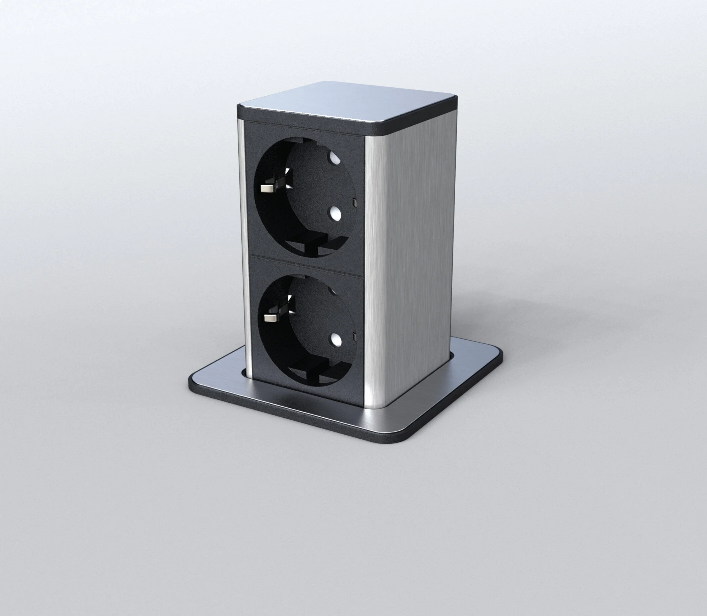

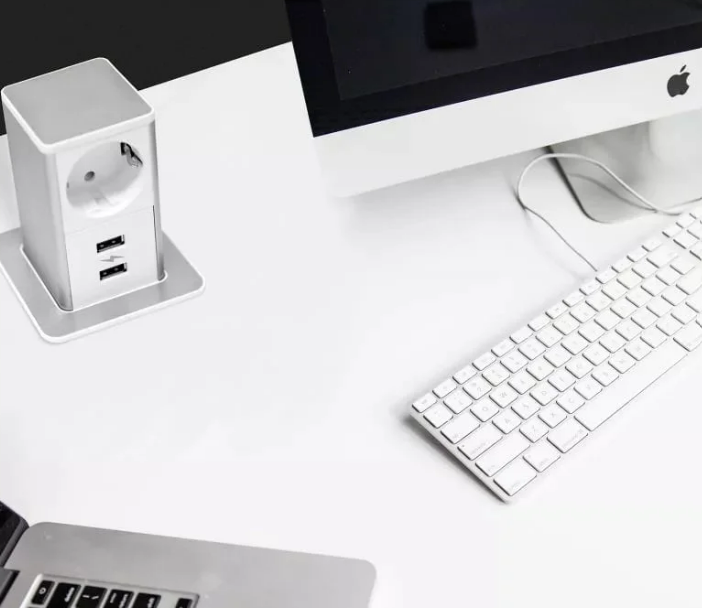

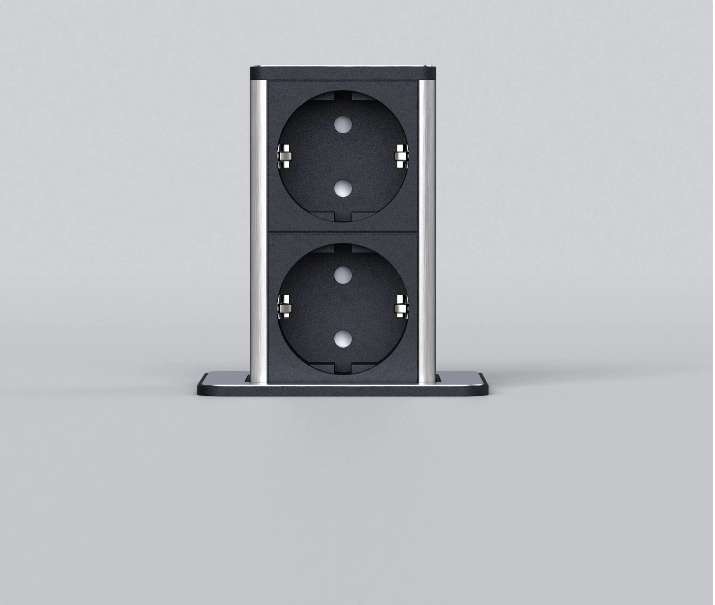

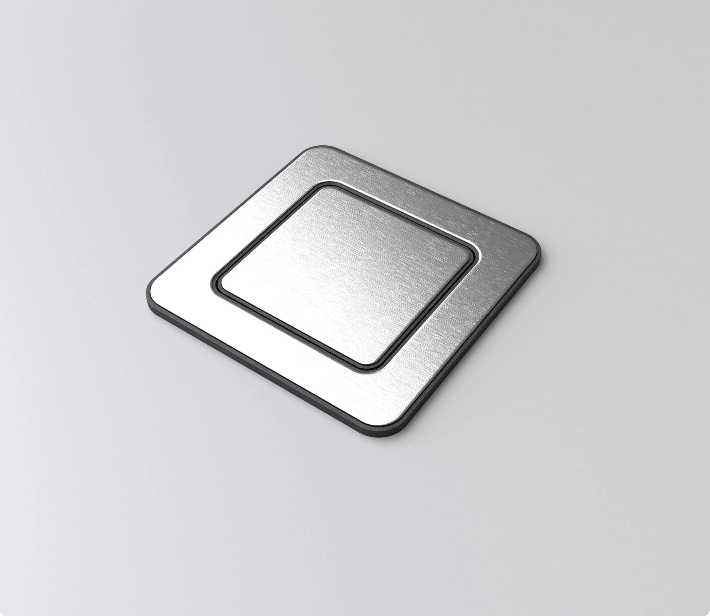

When not in use, the sockets are located where they should be – under the surface of the desk. When they are needed, a light press on the rounded, stainless steel square brings up two plug sockets, or a plug socket and fast charger.

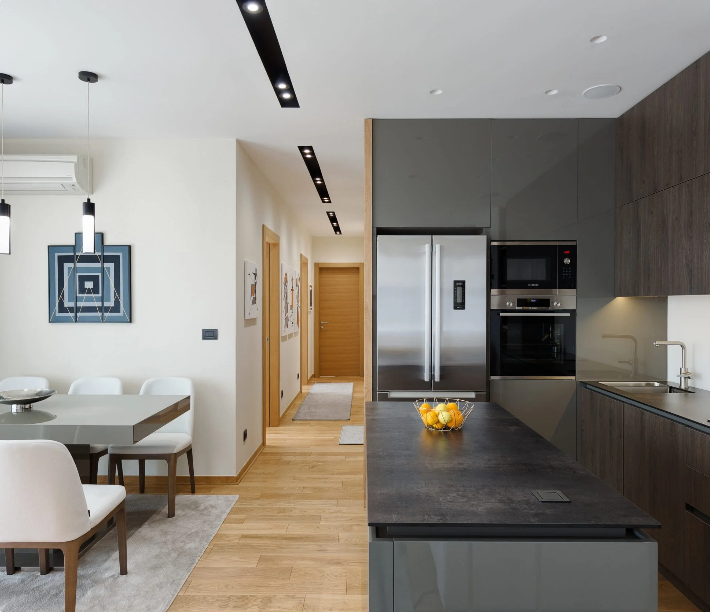

It’s ideal for kitchens because it can be inset into any uniform material so as to sit flush with the work surface, or into wall-mounted cabinets, leaving the work surface clear and much-needed plug sockets close to hand.

The design of the unit ensures that even if a large quantity of liquid were spilt over it, only a small amount would get through and drip vertically past the socket and out below the counter.

About Product

VOLTAGE – 100-250 V max
CURRENT16 А max
FREQUENCY50-60 Hz

NUMBER OF MODULES– 2

TEMPERATURE0 – 40°C

RELATIVE HUMIDITY0 – 95 % (non-condensing)
PROTECTIONIP 42
POWER CABLE / CONNECTOR
Cable HO5VV – F 3×1.5 mm
EPN 1104/EPN 1114 (Wieland m/f) – 400 mm

ON REQUEST

Connector types: B (USA, Canada, Mexico, Japan), C (Europe, South America and Asia), D (India), E (France, Belgium, Switzerland, Poland and Czech Republic), F (Europe and Russia – excluding UK and Ireland), G (UK, Ireland, Singapore), I (Australia, New Zealand, China and Argentina), J (Switzerland and Liechtenstein), K (Denmark and Greenland), L (Italy and Chile), M (South Africa), N (Brazil), Universal socket, Red socket – indicating backup power, Green socket – indicating power delivered via voltage stabiliser.

USB charger, 5V, 2.4A, 2 ports.

2.4A, 2 ports.

DOCUMENTATION

Instructions

Product Catalogue
